Description

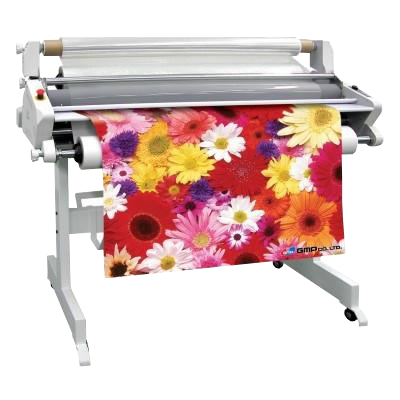

The Excelam-Q Cold machines are perfect for a wide range of services in the copy shop or print finishing environment. Ideal for laminating posters, ink-jet prints, leaflets and maps with superb results. This laminator also offers professional mounting up to 13mm GMP Lamifoam (Foamboard).
Superb laminating results on a wide range of cold pressure sensitive laminating films from 25 ~ 500 micron.
Features include variable speed and pressure adjust handle, for laminating thickness and pressure, mounting thickness setting.
All our cold machines now incorporate heavy duty motors giving a running speed of 5 m/min. Re-winder is connected to the powerful main motor and it is easy to use the outer re-winder tension control.
FEATURES:
- High speed Laminating (Up to 5m/min)
- Strengthen Main Motor for better drive torque and its durability
- Rewinder connected to the powerful main motor
- Top rewinder for releasing liner
- Easy to use for outer rewinder tension control
| Model | 1600COLD/RS |
| Max. Laminating Speed | 5m/min |
| Max. Laminating Width | 1600mm |
| Laminating Films | 25mic ~ 500mic |
| Substrate weight | 80g/㎡ ~ 350g/㎡ |
| Max. Mounting Thickness | 13mm |
| Front Roller Diameter | 80mm |
| Power Requirements | 220~240V, 50/60Hz |
| Power Consumption | 100W, 0.4A |
| Speed Control | Volume |
| Pressure Adjustment | Manual (lever,6-preset) |
| Film Core | 77mm/Dual |
| Dimensions(WxLxH) | 1840 x 750 x 1200mm |
| Type of Main Motor | DC W-Geard Motor /36V100W-DM012 |
| Type of Rewinder Motor | Link to Main Motor |
| Stand | Yes |
